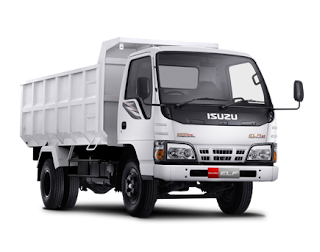

Harga dan Spesifikasi ISUZU ELF NKR 71 CC STD
Daftar Isi
Harga ISUZU ELF NKR 71 CC STD
Harga dan Spesifikasi ISUZU ELF NKR 71 CC STD
*) Estimasi harga on the road dan locco jakarta.
*) Harga dapat berubah-ubah tanpa pemberitahuan terlebih dahulu.
*) Harga dapat berubah-ubah tanpa pemberitahuan terlebih dahulu.
Spesifikasi
Dimensi
| Panjang Keseluruhan | 5905 | (mm) |
| Lebar Keseluruhan | 1920 | (mm) |
| Tinggi Keseluruhan | 2120 | (mm) |
| Jarak Terendah | 210 | (mm) |
| Jarak Poros Roda | 3360 | (mm) |
| Jarak Pijak Roda Depan | 1408 | (mm) |
| Jarak Pijak Roda Belakang | 1425 | (mm) |
| Seating Capacity | - | (person) |
| Front Axle Capacity | - | (kg) |
| Rear Axle Capacity | - | (kg) |
Mesin
| Model/Tipe | 4JB1-TC | |
| Sistem injeksi bahan bakar | - | |
| Isi silinder | 4750 | (cc) |
| Tenaga maksimum | 125/2900 | (PS/rpm) |
| Torsi maksimum | 35/1200-2200 | (Kgm/rpm) |
| Garis tengah x langkah | 115 x 110 | (mm) |
| Kapasitas Tangki | 100 | (liter) |
Ban & Velg
| Ukuran ban | - | |
| Bahan | - | |
| Ban Depan | Single, 750-16-14PR | |
| Ban Belakang | Double, 750-16-14PR |
Lain-Lain
| Kursi supir | - | |
| Seat belt | Yes | |
| Accu | 12-65x2 | (V-AH) |
| Altertnator | 24-35 | (V-A) |
| Kapasitas Tangki | 100 | (liter) |
| Max. Gradeability | 29 | (%) |
| Max. Speed | 105 | (Km/h) |
| Clutch Size | - | (mm) |
Berat
| Curb Weight (berat kosong) | 2300 | (kg) |
| Gross Vehicle Weight (berat total) | 8250 | (kg) |
Transmisi
| Model | MYY5T | |
| C | - | |
| gigi 1 | 5.315 | |
| gigi 2 | 3.053 | |
| gigi 3 | 1.655 | |
| gigi 4 | 1.000 | |
| gigi 5 | 0.721 | |
| gigi 6 | - | |
| gigi 7 | - | |
| gigi 8 | - | |
| Rev | 5.068 | |
| Final Gear Ratio | 5.875 |
Fitur & Standard
| Air Conditioning | No | |
| Radio CD+MP3 | Yes | |
| Power Steering | Yes |
